Opus Secunda M 130

PRECISION SECONDS PENDULUM CLOCK IN A NEW CASE
The anti-reflective mineral glass allows a completely unhindered look at the dial, hands, movement and pendulum. The U-shaped glazing is cut and glued on a mitre in a single piece by expert craftsmen. The rims and base are decorated with metal inlays. And there is no need for a locking hook, thanks to the discreet magnetic catch on the door.

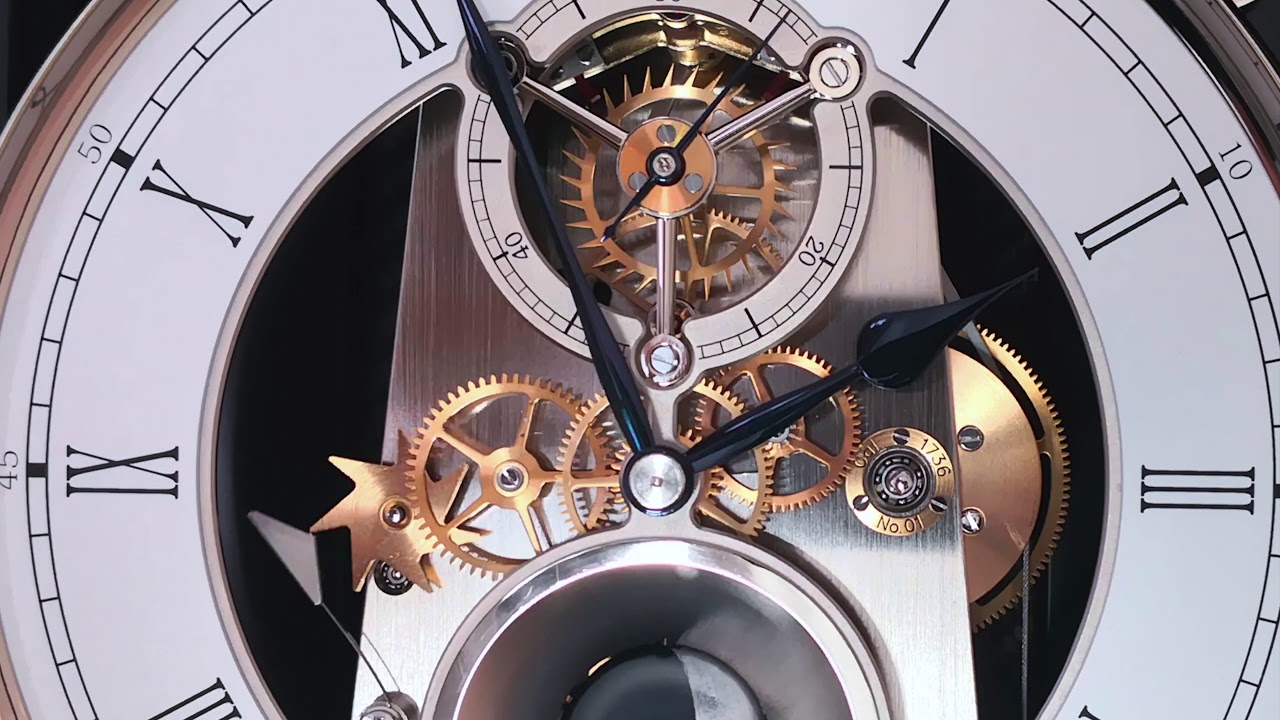

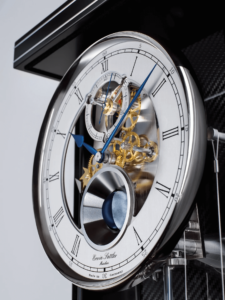

The elegant design of the Opus Secunda M 130 is dominated by a skeletonised dial, which allows a glimpse of the gold-plated gear wheels. The spherical moon in a funnel also gives the timepiece a unique look. It is hand-painted in the manufacture with the highest level of attention to detail.

This seconds pendulum clock is also an extremely accurate timepiece, maintaining a maximum accuracy deviation of three to four seconds per month. A weight running down the side allows a power reserve of 30 days. The fine gear wheel toothing and the use of ball or jewel bearings for all rotating parts ensure a working life lasting for many generations. The slight temperature-induced changes in the length of the Super Invar pendulum rod are counterbalanced by a precisely calculated, compensation tube. To prevent bigger accuracy deviations due to fluctuations in air pressure, a double aneroid capsule is added to the pendulum.
Polite restraint and modern elegance are combined in a compellingly beautiful precision timepiece that takes up all the space it requires without being intrusive.

PRECISION SECONDS PENDULUM CLOCK IN A NEW CASE

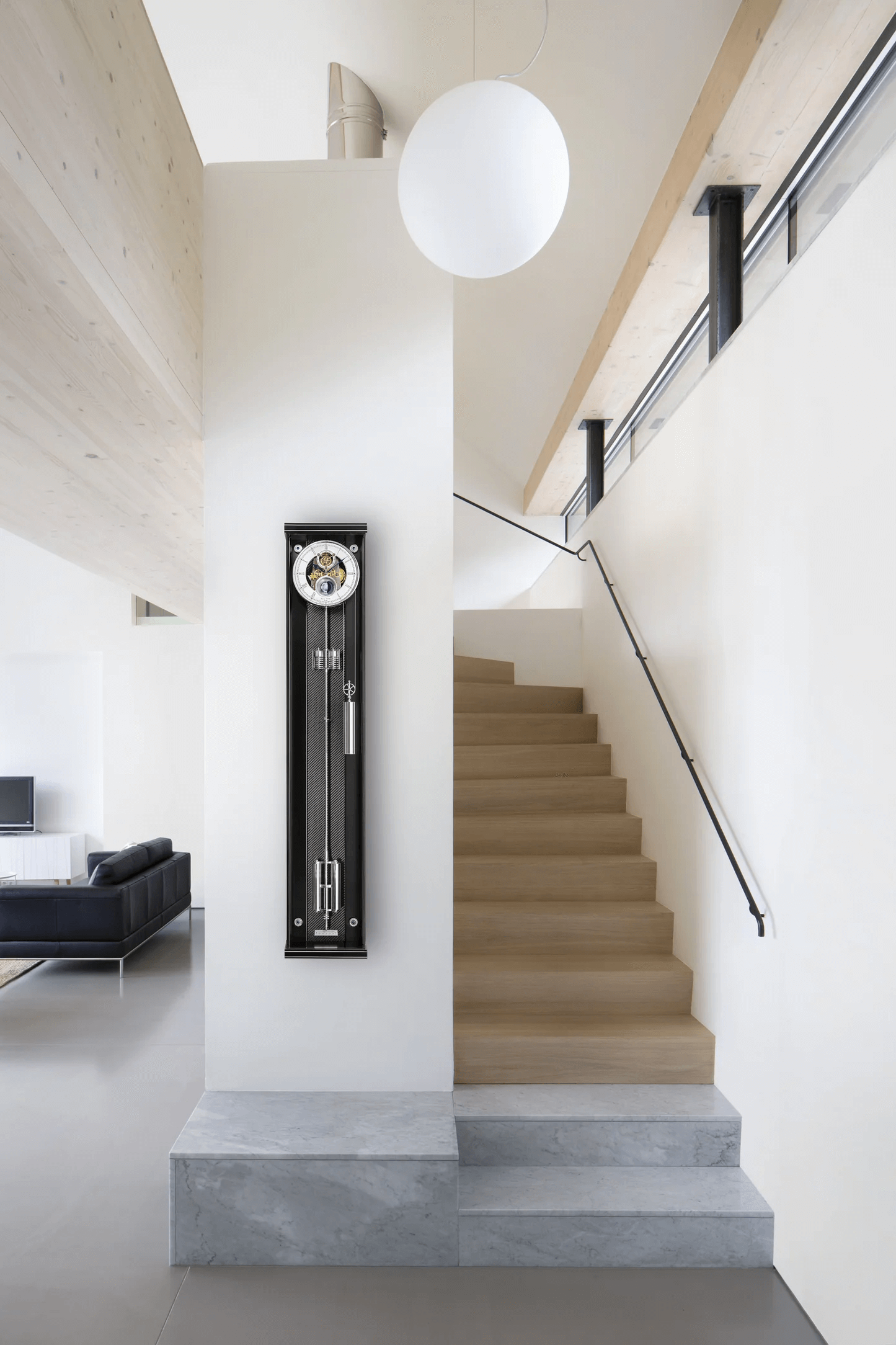

The steady swing of the one-second pendulum and the quiet ticking of this high-precision timepiece convey a sublime serenity. The new Opus Secunda M 130 hangs on the wall like a painting, elegant and flat. Despite its complex inner workings, it only takes up a modest 12 centimetres on the wall. The use of never-before-seen technical refinements makes the Erwin Sattler manufacture calibre 1736 the flattest ever precision movement. Each movement is engraved with an individual number.

HIGHLIGHTS
Case with anti-reflective mineral glass
Elegant and flat with a depth of only 12cm
Three-dimensional hand-painted moon phase

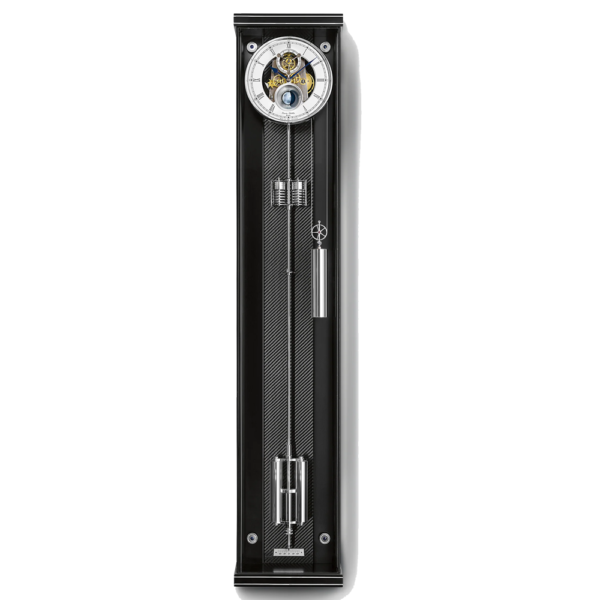

OPUS SECUNDA M 130
The steady swing of the one-second pendulum and the quiet ticking of this high-precision timepiece convey a sublime serenity. The new Opus Secunda M 130 hangs on the wall like a painting, elegant and flat …

Case Black varnish with a carbon cassette in the back wall and metal inlays, door with magnetic catch
Height: 134 cm, width: 25.5 cm, depth: 12.5 cm
Crystals Anti-reflective mineral glass, U-shaped glass glued on a mitre
Movement Sattler calibre 1736
Power reserve 30 days
Drive 3.100 g weight on pulley with jewel bearings
Oscillator Invar pendulum (diameter 8 mm), temperature and air-pressure
compensation with twin barometer, double-cylinder pendulum body
Ball bearings 11 precision ball bearings
Jewel bearings 6 in screwed-in chatons, 2 agate anchor pallets
Dial Anodised aluminium, skeletonised with visible escapement (Graham), three-dimensional hand-painted moon phase in the funnel, numbered
Hands Blue steel hands, domed by hand
Beat rate 3.600/h
Weight 30 kg

在新的外殼精確秒針鐘擺掛鐘
防反射礦物玻璃 讓眾人可看到無反射迷人的鐘面, 分時針, 機器 和 鐘擺的景色. 專業手藝 細心切U形狀玻璃窗 單件玻璃仔細塗上 底部和邊沿都有鑲嵌金屬裝飾
不需要傳統鉤子鎖 慎重安裝磁鐵在門上

Opus Secunda M 130 高雅設計 骨架式鐘面成為主角. 讓眾人可看到鍍金齒輪. 漏斗形球形月亮讓這時鐘有獨特的外觀. 手漆製作以最高等級的注重細節

這秒針鐘擺時鐘是非常精準時鐘. 可維持精準誤差每個月3-4秒. 鐘錘從旁邊滑下來允許30天動力儲存. 優質齒輪 所有旋轉部件使用滾珠或寶石軸承會讓壽命延長到
許多時代. 輕微溫度改變促使超級殷鋼擺桿長度(被精確計算補償管給平衡). 雙無液液體瓶蓋加在鐘擺是為了避免更多氣壓波動所造成準確誤差.

禮貌克制和現代優雅結合精美絕倫的精密時鐘 占了需要所有空間

在新的外殼精確秒針鐘擺掛鐘
精確秒鐘擺時鐘的穩定擺動 安靜的滴答聲 展現崇高的寧靜. Opus Secunda M 130 掛在牆壁如高雅平坦的畫. 這複雜機器時鐘只占12公分的牆壁空間. Erwin Sattler 製作calibre 1736 使用技術改進方法來創造最平坦的精確時鐘 每機器有刻上獨立數字

焦點
抗反射礦物玻璃外殼
高雅 平坦 12公分深度
3-D 手漆月相盈虧

精確秒鐘擺時鐘的穩定擺動 安靜的滴答聲 展現崇高的寧靜. Opus Secunda M 130 掛在牆壁如高雅平坦的畫

外殼: 黑漆手拋光碳外殼盒 鑲嵌金屬底部邊沿 慎重安裝磁鐵在門上
高: 134公分 寬: 25.5公分 深: 12.5公分
水晶抗反射礦物玻璃製作 U形狀玻璃仔細塗上
30天動力儲存
3.1斤鐘錘在滑輪與寶石軸承驅動
殷鋼鐘擺晃動(直徑 8mm) 溫度和補償氣壓功能的鐘擺與雙氣壓計 雙缸鐘擺體
11顆精確滾珠軸承
6顆寶石軸承在旋入式套筒 2顆瑪瑙錨托盤
陽極氧化鋁製鐘面 骨架式鐘面與鏤空擒縱系統(graham) 漏斗有3-D 手漆月相盈虧 刻數字
手工圓頂藍鋼分時針
重量: 17公斤

FULL MOON CALENDAR
07. Jan

05. Feb

07. March

06. April

05. May

04. June

03. July

31. Aug

15. Sept

14. Oct

13. Nov

13. Dec
